The FBT-related features wrongly appear if a gamepad is connected
tracked
naqtn
On the three-point tracking environment, the FBT-related buttons like
Calibrate FTB
on QM appear if you connect a gamepad to your PC.Tested with Build 1345.
Repro steps
- Connect a gamepad to your PC.

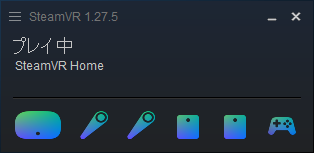

- Start VRChat. SteamVR window will show the gamepad. (See attached 1st image)

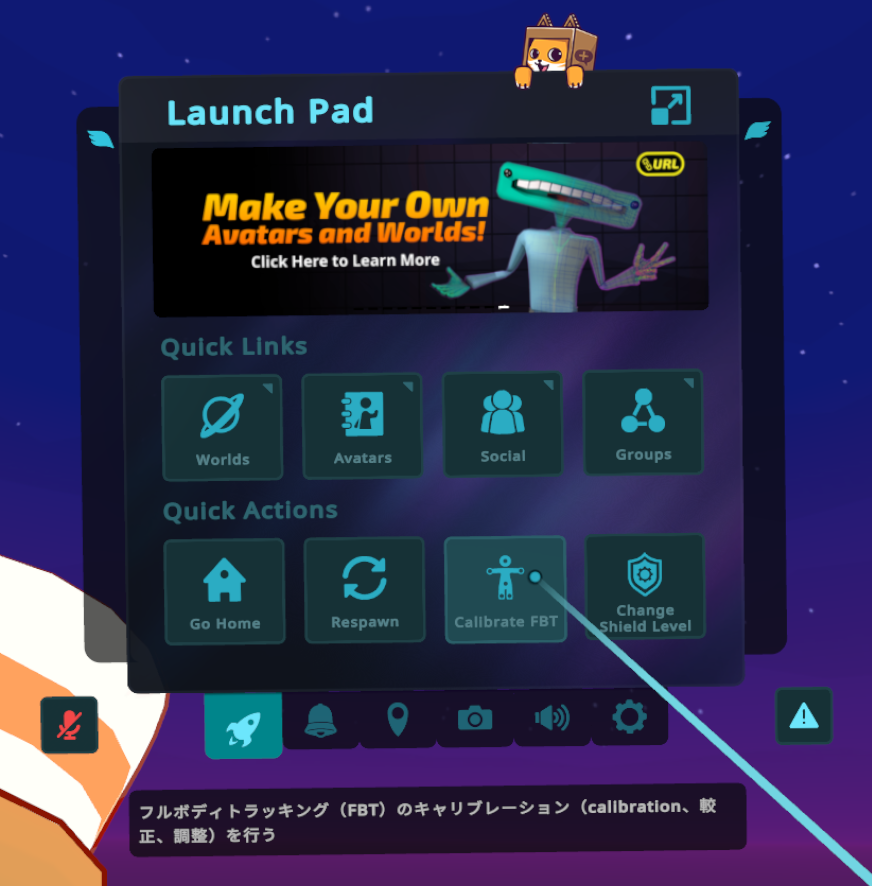

- You will see the Calibrate FTBbutton onQM > Launch Padinstead of theSit / Standmode button. (2nd image)

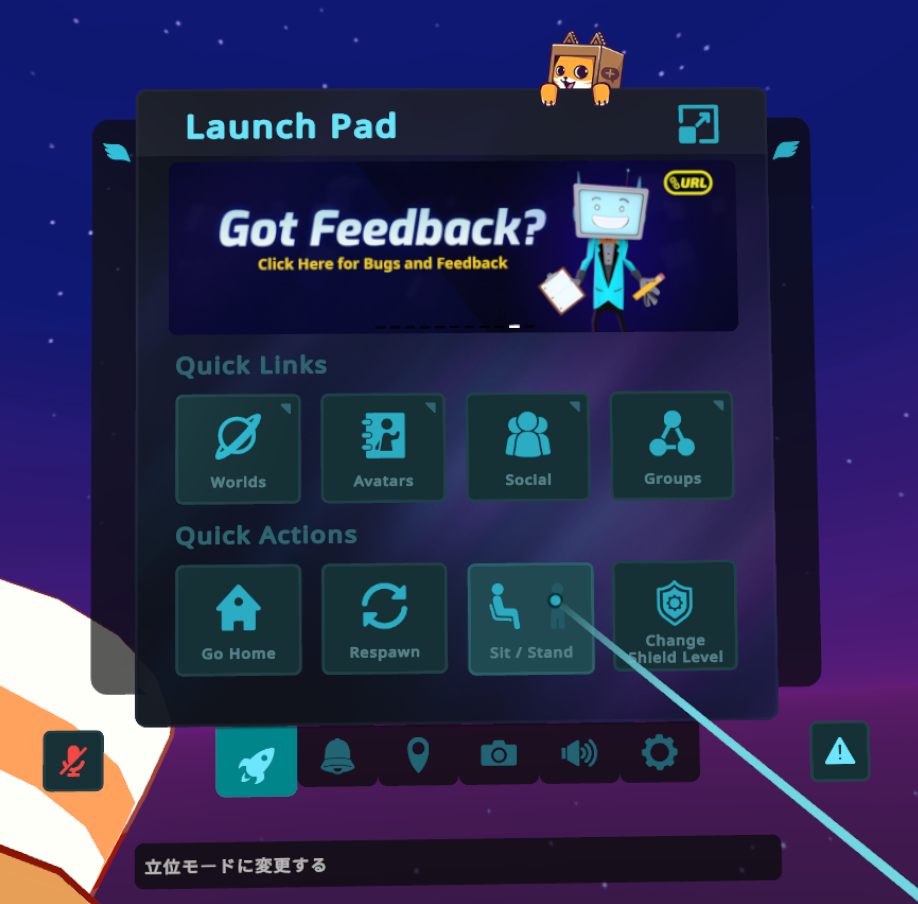

- Disconnect the gamepad. The Calibrate FTBbutton will change to theSit / Standbutton. (3rd image)
Workaround
Possible workarounds are:
- (of course) Disconnecting the gamepad. You can do this after starting the VRChat app.

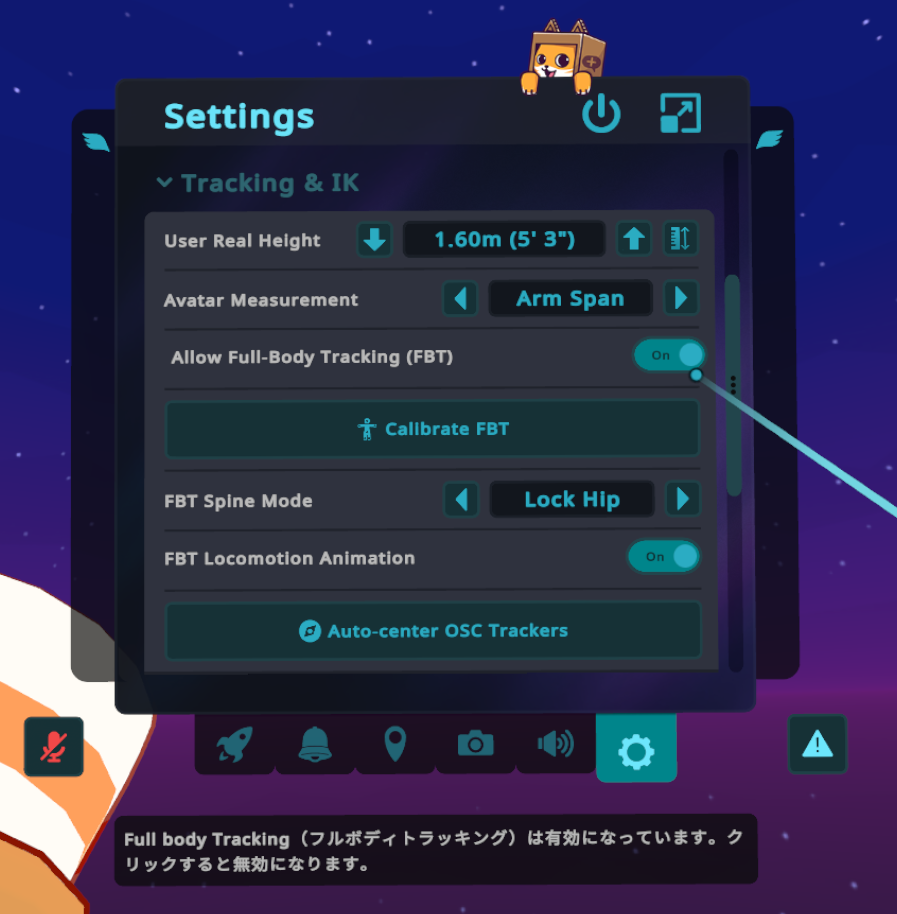

- Or, set Allow Full-Body Tracking (FBT)off. That on/off button is onQM > Settings > Tracking & IK(4th image). However, this option will not be saved, so you must do it again after restarting VRChat.

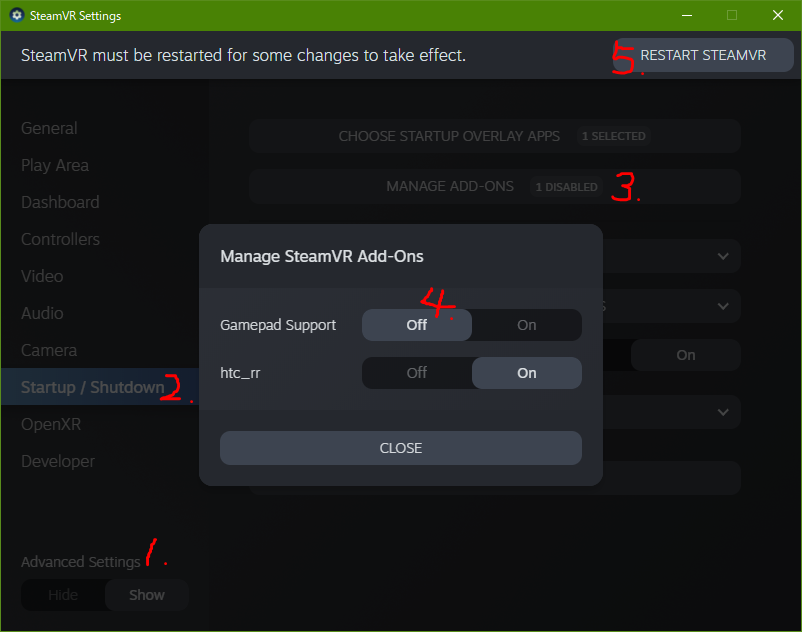

- Or, set Gamepad SupportOff on SteamVR settings (5th image). Note that this is a global option of SteamVR and it affects other games.
Thanks
Thank you for sharing the info
- https://knb-mayumi.com/vrchat-sit-stand/
- https://twitter.com/ruikotosaka/status/1700368829245976731
- https://discord.com/channels/189511567539306508/946881839400882196/1150596404180430909
- https://discord.com/channels/189511567539306508/946881839400882196/1150604078943060059
Summary for Japanese (日本語要約):
- ゲームパッドをPCに接続していると、3点トラッキング環境でフルボディトラッキング用の機能が誤って表示されます。
- 例えばクイックメニューの "Sit / Stand" ボタンの代わりに "Calibrate FTB" ボタンが表示されます。
- 暫定的な対策はゲームパッドを取り外す(VRChat 起動後でも可能)か、Allow Full-Body Tracking (FBT)設定を off にします(このon/offボタンはQM > Settings > Tracking & IKにあります。保存されないので再起動したら再び設定する必要があります)。SteamVR の設定でゲームパッドのサポートをオフにする方法もあります(ただしSteamVR全体の設定なので他のゲームにも影響します)。
Log In
Sayamame
StormRel Hi, are there any updates on this? (sorry for pinging)
StormRel
Sayamame: The issue is known, I can't provide more info than that currently
StormRel
Merged in a post:
Gamepad connection issues
は
はいより とうは
f MetaQuest2 is connected to a PC and the gamepad is connected to the PC in PCVR mode, the Lounch pad menu will automatically change to FullBody tracking mode, even if it is Quest only.
D
Docteh
StormRel
tracked
naqtn
Additional note. In the FBT environment, the "fake" tracker of the gamepad appears during the calibration. It sticks at the origin of the playspace, but it can be linked to the foot. So, FBT users also should be aware of this issue.

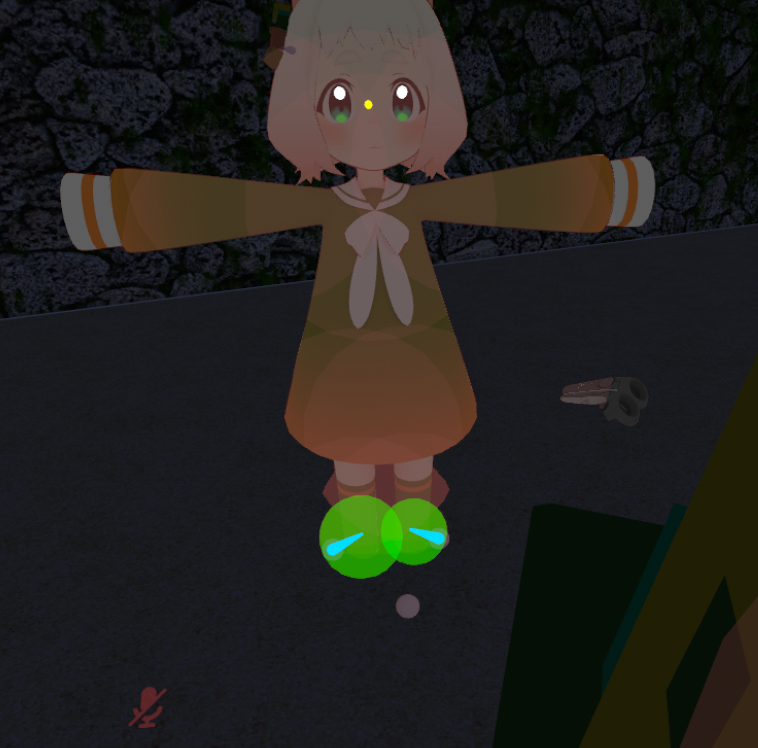

In the attached image, I use 5-point tracking. I think the extra sphere in front of the avatar is the gamepad. You can avoid the problem by standing slightly offset from the origin during the calibration.
